Description
Choose from 3 ballistic powertrains and multiple mind-blowing colourways. Fully re-engineered and reconsidered with a temperature protected PMSM encoder motor, 80 Amp Fardriver controller, bigger batteries, bigger brakes and 3-mode smart TFT colour display. Other exciting features are available such as bronze inverted suspension forks, an integrated LED headlight and luxury suede printed seats. The EBX range firmly cements the Dragster as the “Ultimate Wheelie Weapon” and King of the streets. .
| Manufacturer | EBOX |
|---|---|
| Model | Dragster RS |
| Frame Design | High strength steel, removable motor plate, integrated chain tensioner, loop tail design, quick release battery system, 2-point foot peg position mounts, frame mounted stunt peg compatible. |
| Bar Risers | 6061 T6 CNC machined 35mm rise Ø22.2 |
| Handlebar | EBOX Race 6061 T6 29.5" x 7", with 3 piece crossbar and bar pad |
| Seat | Luxurious suede RS wedge seat |
| Front Suspension | 100mm Travel Inverted forks with bronze anodised fork legsand black hardened stanchions |
| Wheel Size | 6/6 |
| Tyres | 145/70-6 SUNF fast SM tyres |
| Front Brake | Hyraulic Disc (Right lever) e-moto brakes, Wavey rotor 180mm, 6 bolt 48mm BCD |
| Rear Brake | Hyraulic Disc (Left lever) e-moto brakes, Wavey rotor 160mm, 6 bolt 48mm BCD |
| Gearing | Front 10T, Rear 55T |
| Chain | Uprated performance gold 219H 108L |
| Motor | 72V EBX PMSM motor with temp feedback and encoder |
| Motor Voltage | 72v |
| Peak Power | 6.3KW (8.5hp) |
| Rated Power | 5.4KW |
| Max RPM | 9,000 |
| Battery | New 72v 25 Ah battery with BMS 21700 Cells potted in steel case with Qs8 connector and air breaker switch |
| Controller | 80 Amp fardriver controller |
| Throttle | SURRON style full twist |
| Display | TFT odometer display with 3 speed modes and fault code analysis software |
| Connectors | Automotive connectors with sealed wiring harness |
| Lights | LED headlight and switch |
| Charger | AC 100-240V, Output: 84V, 6A |
| Charge Time | 4-5 hours |
| Range Per Charge | 28-31 miles (45-50Km) |
| External Adjustability | 3 riding modes |
| Top Speed | 56mph (88Km/h) |
| Waterproof | IP54 |
| Other | USB A + C charging ports |
| Wheelbase | 910mm |
| Ground Clearance | 120mm |
| Seat Height | 610mm |
| Weight | 49kg (108lbs) |
| Built to Race | B2R |
| Warranty | EBX 1 year/1000 miles (whichever comes first) powertrain warranty. 6 month parts warranty |

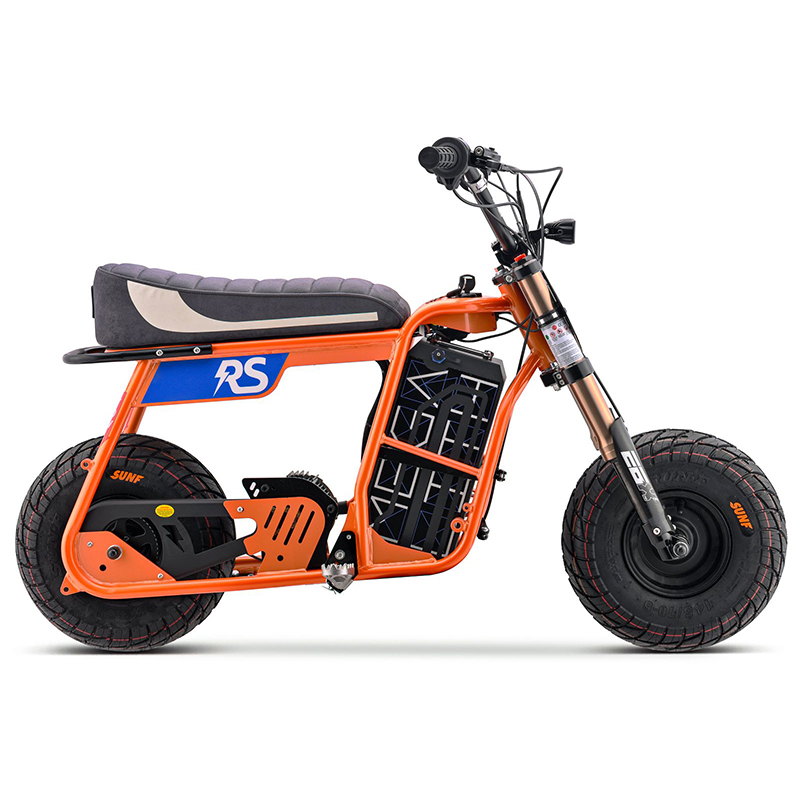

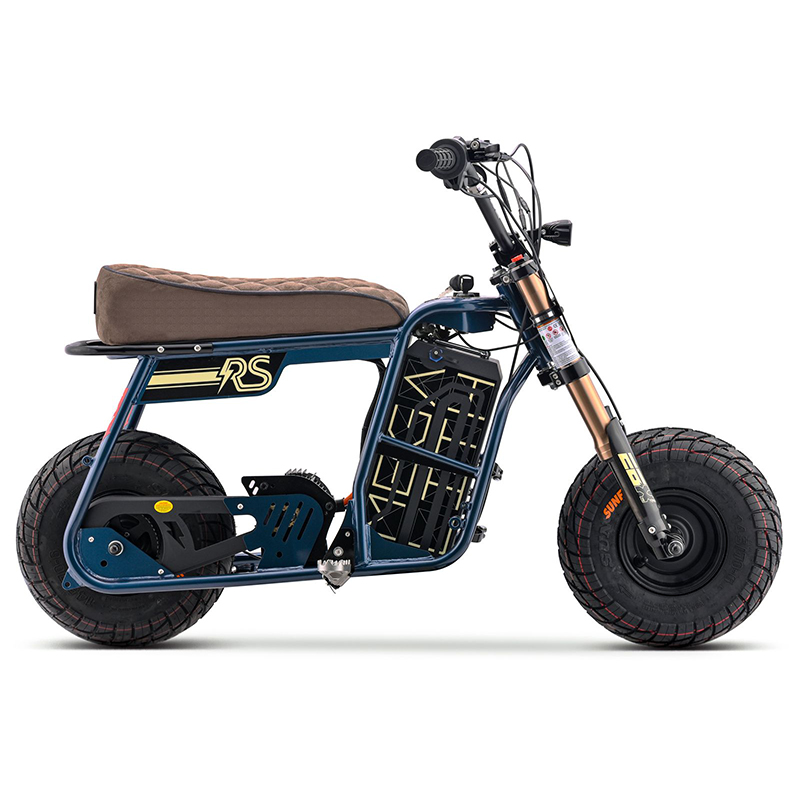

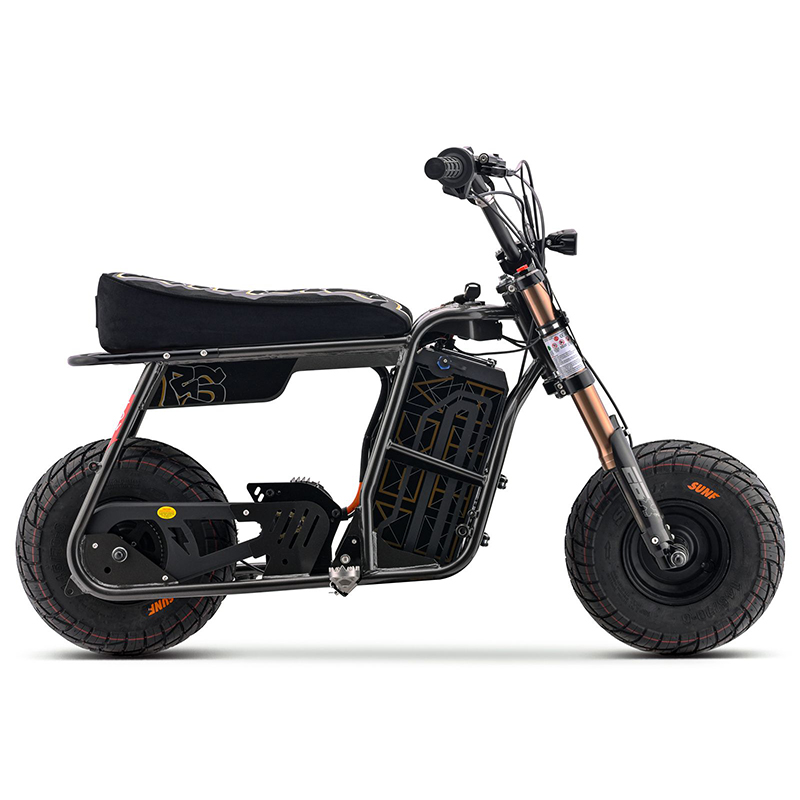

Dragster 72 RS
£1,999.00
THE EBX Dragster is FINALLY HERE! In a world full of limp, slow, plastic failures, comes a truly HARDCORE electric minibike with more steeze than should be legal in such a miniature package. Featuring insane top speeds of up to 55 mph, the EBX is now delivered with a SERIOUS safety warning: Do Not Ride if You are Easily Frightened.
Additional information
| Weight | 48.5 kg |
|---|---|
| Dimensions | 118 × 28 × 58 cm |
| Colour | Black, Navy, Orange |
